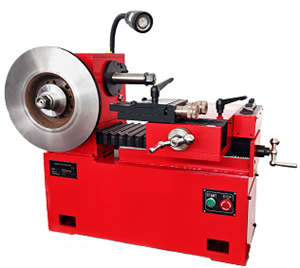

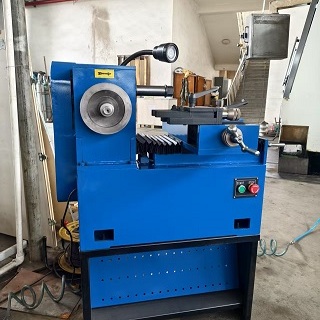

Simple Type Brake Disc/Drum Cutting Machine

1. C9450 adopts the powerful AC motor of 1. 1Kw, which can meet the demanding requirement of industrial motion.
2.It has two grades of revolution speeds to choose, which will meet the needs of cutting discs and drums of different diameters.

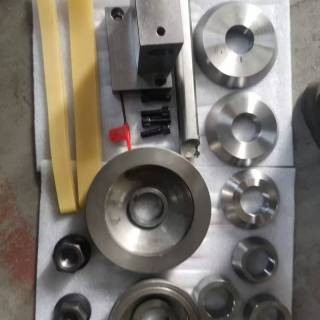

3. Specially-designed taper cones for both discs and drums, which will ensure the cutting precision.
4. The machine is equipped with lighting and ensure the working area well-lighted.
5. The machine is equipped with a limit switch. The machine will stop automatically when the slide carriage touches the limit switch during auto-running.
6. The electrical device adopts the products of Delixi brand and ensures the product quality.
7.Have infinitely variable speeds

Features

1. C9450 adopts the powerful AC motor of 1. 1Kw, which can meet the demanding requirement of industrial motion.

2.It has two grades of revolution speeds to choose, which will meet the needs of cutting discs and drums of different diameters.

3. Specially-designed taper cones for both discs and drums, which will ensure the cutting precision.

4. The machine is equipped with lighting and ensure the working area well-lighted.

5. The machine is equipped with a limit switch. The machine will stop automatically when the slide carriage touches the limit switch during auto-running.

6. The electrical device adopts the products of Delixi brand and ensures the product quality.

7.Have infinitely variable speeds

Specifications

Motor；110v/220v/380v 50Hz/60Hz

Motor Speed；75,130RPM

Feed Rates-Rotor and Drum；0 - 0.026"(0.066mm)

Precision；≤0.02mm

Dimension；930x630x850mm

Maximum Rotor Thickness；1.875"(48mm)

Rotor Diameter；7" - 17.7" (180 - 450mm)

Drum Diameter；7" - 13.78" (152 - 350mm)

Drum Depth；3.94"(100mm)

Gross Weight；260KG
